MS220
Circular satin-finishing machine
- Satin-finishing
Informations and download
Characteristics
- 4 axis cinematics
- High performance machine
- Complete protection of the mechanical components (covers, bellows and over-pressurization)
- Optimized cleaning of the surfaces
- C rotary axis: workpiece spindle & sensitive slide
- B rotary axis: 4 tool spindles
- Dressing of the grinding wheels: Retractable cutter
- Dimensions: 1.1 x 1.7 x 2.2 m
Functionalities
External satin-finishing
Internal satin-finishing

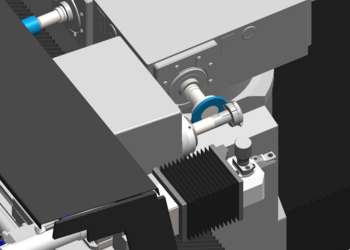

Satin-finishing of the undersides of the lugs
Dressing of the front of the grinding wheel (quill configuration)

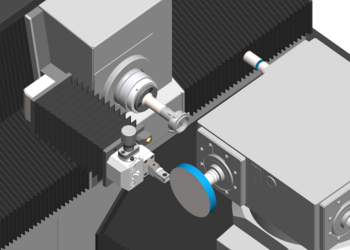

Dressing of the grinding wheel Ø (arbor configuration)

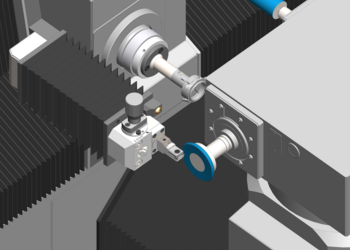

Dressing of a shaped grinding wheel (quill configuration)
Specificities
- Operation: Satin-finishing
- Materials: Stainless steel, titanium, precious metals
| • Watch cases |
| • Backs |
| • Bezels |
| • etc. |
| • Retractable dressing tool embedded on X axis, modular dressing interface |
| • Yerly Y60 tooling, machining force monitoring (max. 30 N) |
| • Sensitive and friction-free crossing slide |
| • 4 synchronous spindles |
| • Speed range: 10 to 5,000 rpm |
| • "Manual" HSK-C25 interface |
| • Controlled air blasting |
| • External satin-finishing |
| • Internal satin-finishing |
| • Satin-finishing of the undersides of the lugs |
| • Dressing of the front of the grinding wheel (quill configuration) |
| • Dressing of the grinding wheel Ø (arbor configuration) |
| • Dressing of shaped grinding wheels (quill configuration) |
