DLyte 100PRO Carbide

DLyte 100PRO Carbide

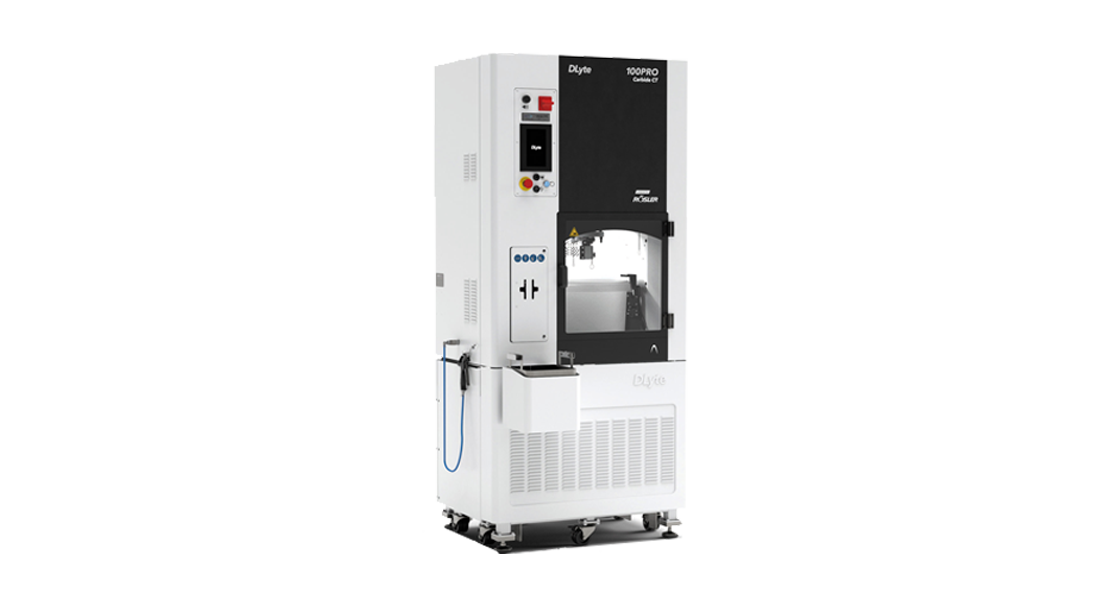

Electrolytic polishing machine

The DLyte 100PRO Carbide is a compact machine designed for the surface finishing of cutting tools and other cemented carbide components. This equipment delivers high-quality, fully automated surface treatment for milling cutters, inserts, and other carbide tools with specific and highly precise finishing requirements.

  • Electrolytic polishing

Informations and download

Contact

Characteristics

  • Compact machine, specially designed for cemented carbide
  • Automated, high-precision surface treatment
  • Suitable for milling cutters, inserts, and other cutting tools
  • Consistent and repeatable results from batch to batch
  • Advanced PLC-controlled electronics with asymmetric pulses
  • Precise control of speed and rotation direction
  • Integrated chiller for stable temperature and consistent results

Specificities

  • Compact dimensions, suitable for production environments
  • Intuitive interface for easy operation
  • Reduced maintenance thanks to optimized design
Load capacity 8 kg
Machine dimensions (L × W × H) 1780 × 870 × 2395 mm
Machine weight 283 kg
Total bucket weight (electrolyte + parts) 20 kg

ELECTRICAL

ELECTRICAL
Power (main socket) 3,5 kW
Load current (main socket) 16 A
Power (chiller socket) 1,5 kW
Load current (chiller socket) 6,5 A
Voltage 230 V ~ ±10 % / 50 Hz

HYDRAULIC

HYDRAULIC

HYDRAULIC
Distilled water tank 8 liters

PNEUMATIC

PNEUMATIC
Required air pressure 5–6 bar (according to ISO 8573-1)
Air consumption < 40 L/min
• Steels
• Cobalt-chrome
• Titanium
• Copper-based alloys
• Hard metals
• Nickel-based alloys
• Aluminium
